Name: Milk skin milk powder forming and baking integrated machine
Brand: Baigong
SKU: MILKSKINROASTINGMACHINE
Availability: InStock

equipment characteristics

Non-frying process: Baked at high temperature, low oil content and healthier.

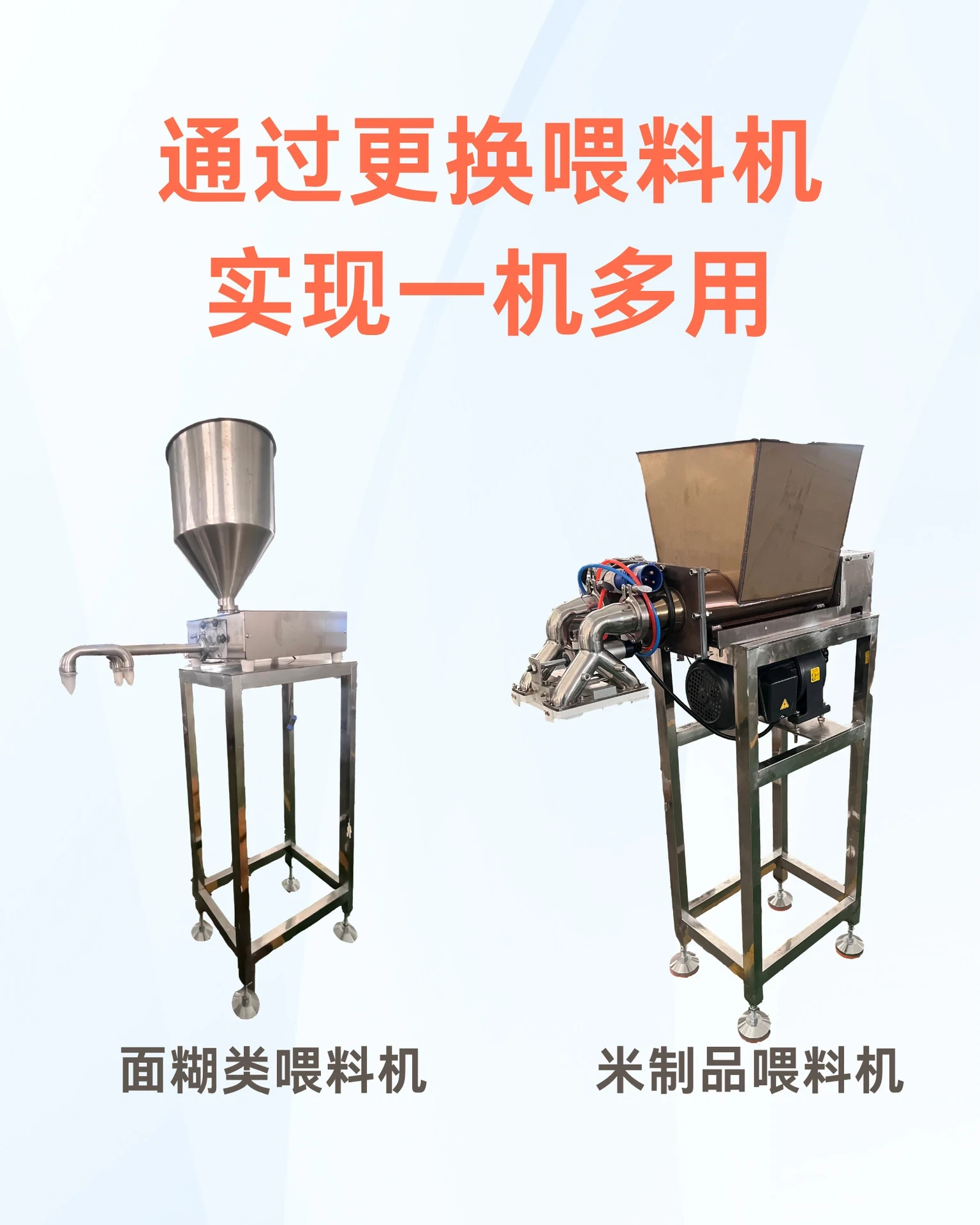

a multi-purpose machine: Changing the feeder can make dairy products such as roasted milk skins, milk slices, and milk bumps.
18 molds 8 pieces high yield: Continuous discharge, suitable for large-scale production.
intelligent temperature control: PLC+ touch screen, independent temperature control of upper and lower molds.

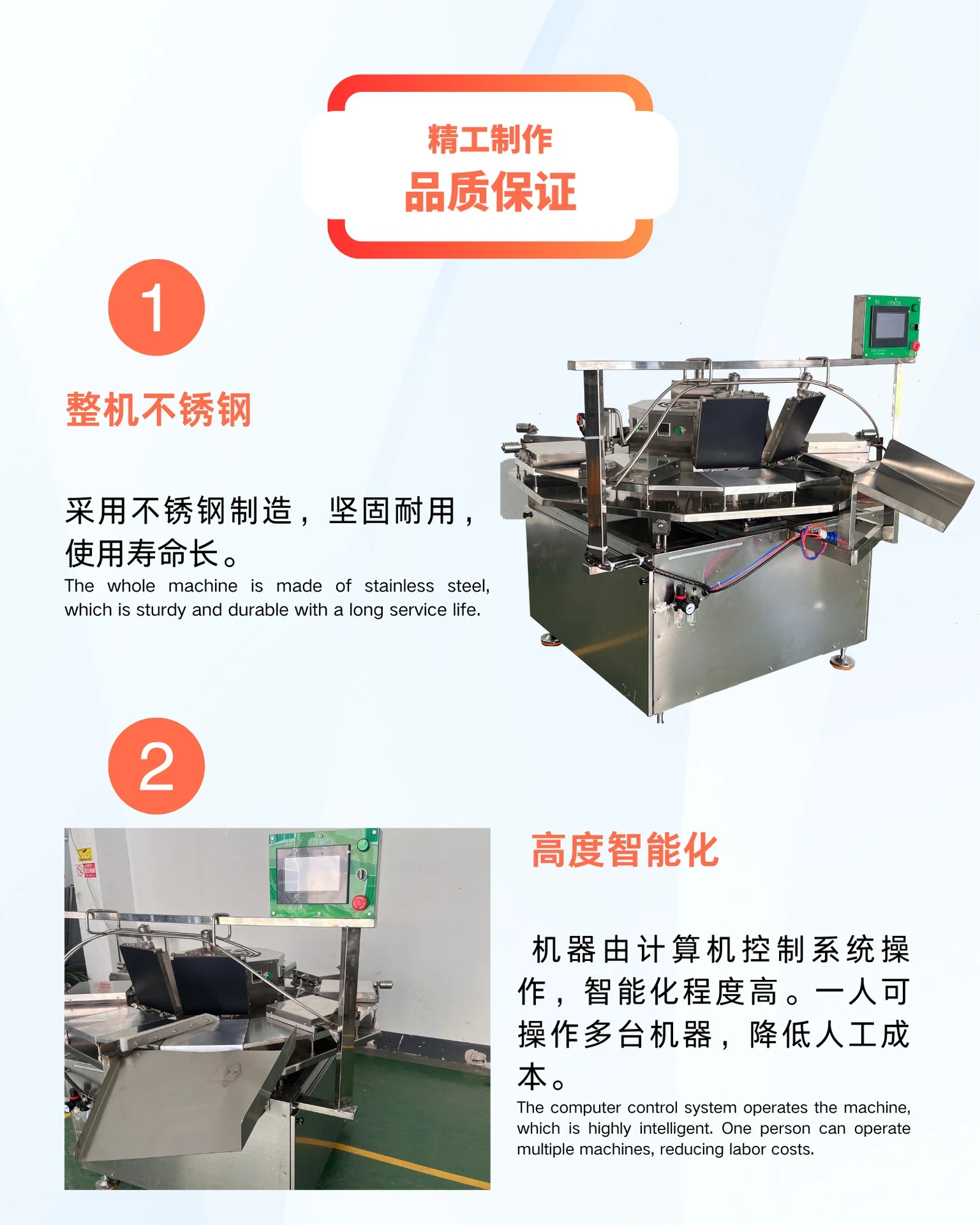

food grade material: Stainless steel body, wear-resistant and durable.
simple operation: One person is on duty and automatic grouting forming.

scope of application

Puffed and baked food factories, coarse grain products production lines, and central kitchens can produce dairy products such as roasted milk skins, milk slices, and milk bumps.

Product operation video

The following is a video of the actual operation of the equipment, which can visually view the entire process of forming, baking and discharging.

Real shots of products and detailed display

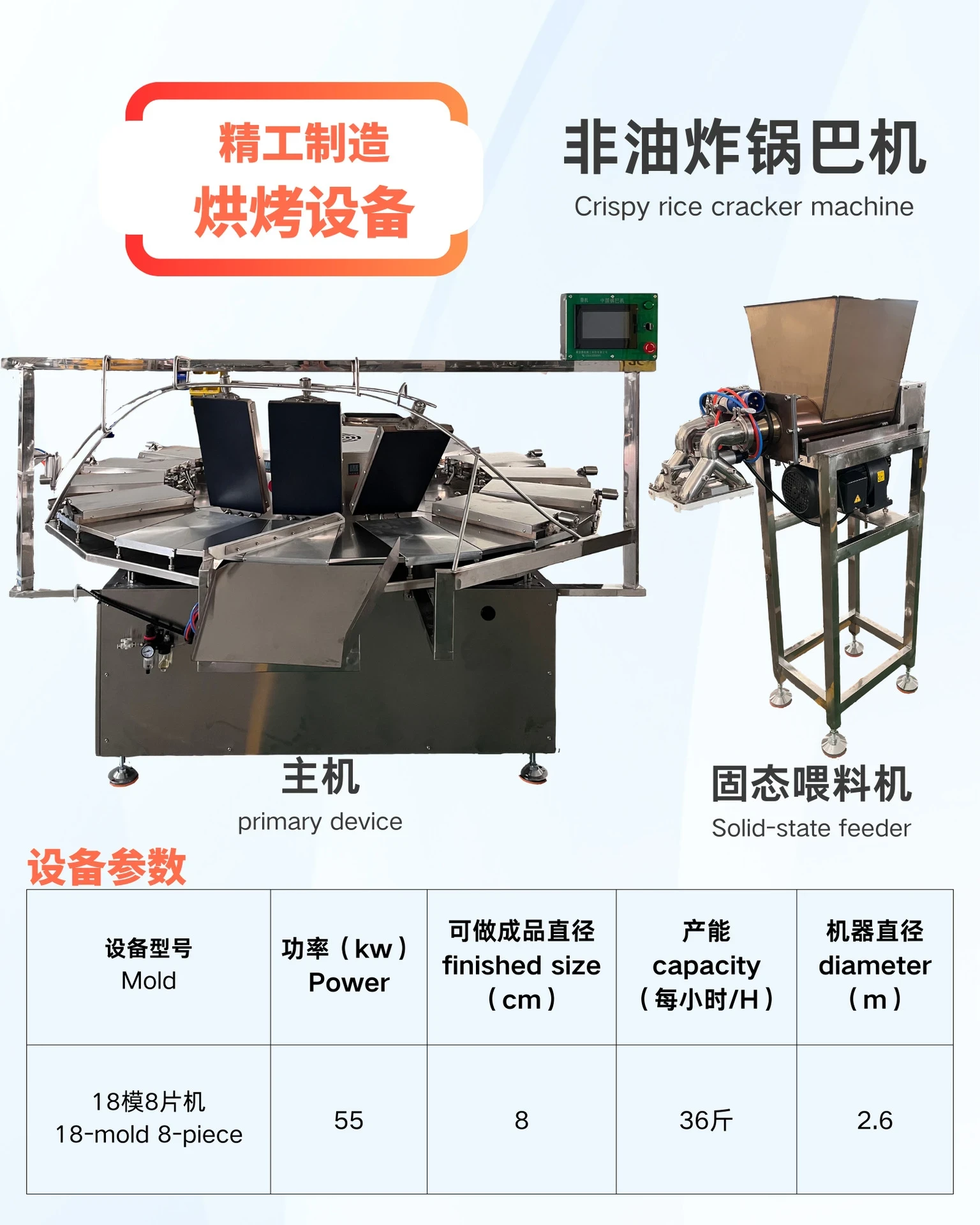

parameters	specifications
parameter items	parameter values
product model	BG-NP-18
Baking sheet size	240250/240410/300*400 (optional)
rated power	33kw/39kw/43kw (different machine models, different power)
Overall size	1950/2300 mm
voltage	380V
body Material	food grade stainless steel
heating method	electric
control mode	PLC+ touch screen

daily maintenance

maintenance items	cycle	maintenance content
equipment cleaning	daily	After the equipment cools down, wipe the body, mold and receiving parts with a semi-dry soft cloth to remove residual materials; avoid water directly flushing the electric control box.
mould inspection	weekly	Check whether the fixing screws of the forming mold and baking plate are loose to ensure smooth opening and closing; clean up if there is any adhesion.
electrical inspection	monthly	Check whether the power cord, plug, thermostat and emergency stop switch are working normally to ensure reliable grounding.
drive lubrication	quarterly	Add food-grade lubricants to moving parts such as chains and bearings to keep running smoothly.
long-term storage	withdrawal phase	Thoroughly clean and dry, cover with a dust cloth, and store in a dry, ventilated, non-corrosive gas environment.

precautions

Never put your hands or foreign objects into the mold/baking pan area when the equipment is running; be sure to cut off the power and wait for the equipment to cool completely before maintenance.

This machine is a non-fried crispy forming equipment independently developed by Nanjing Baigong Intelligent Technology. It uses a high-temperature pressing and baking process to press the rice paste/flour paste into shape and bake it until crispy. The equipment is equipped with 18 molds and 8 pieces of baking pan. By replacing the solid/liquid feeder, dairy products such as roasted milk skins, milk slices, and milk bumps can be made. The whole machine is food-grade stainless steel, PLC+ touch screen accurately temperature controlled, and can be operated by a single person. It widely serves large-scale production in food processing plants and central kitchens.
