Name: Desktop cake filling machine liquid filling machine rice cake machine.
Brand: Baigong
SKU: CAKEGROUTINGMACHINE
Availability: InStock

Product operation video

The following is a video of the actual operation of the equipment, which can visually view the entire process of feeding, unloading and operation.

equipment characteristics

Precise grouting: Driven by servo motor, the error of grouting volume is ±1g, and the grammage thickness is consistent

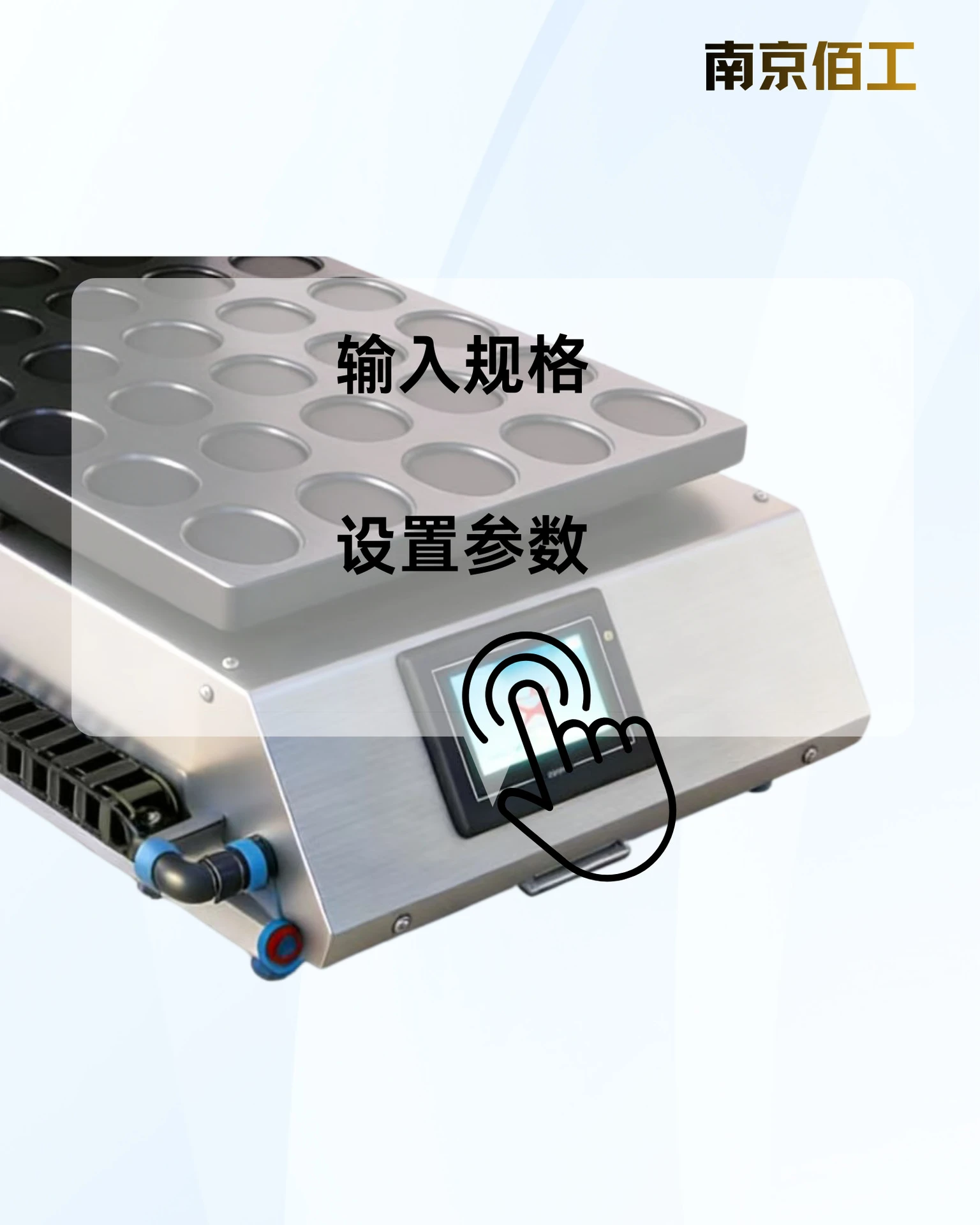

recipe storage: PLC touch screen can store dozens of recipes and switch products with one click

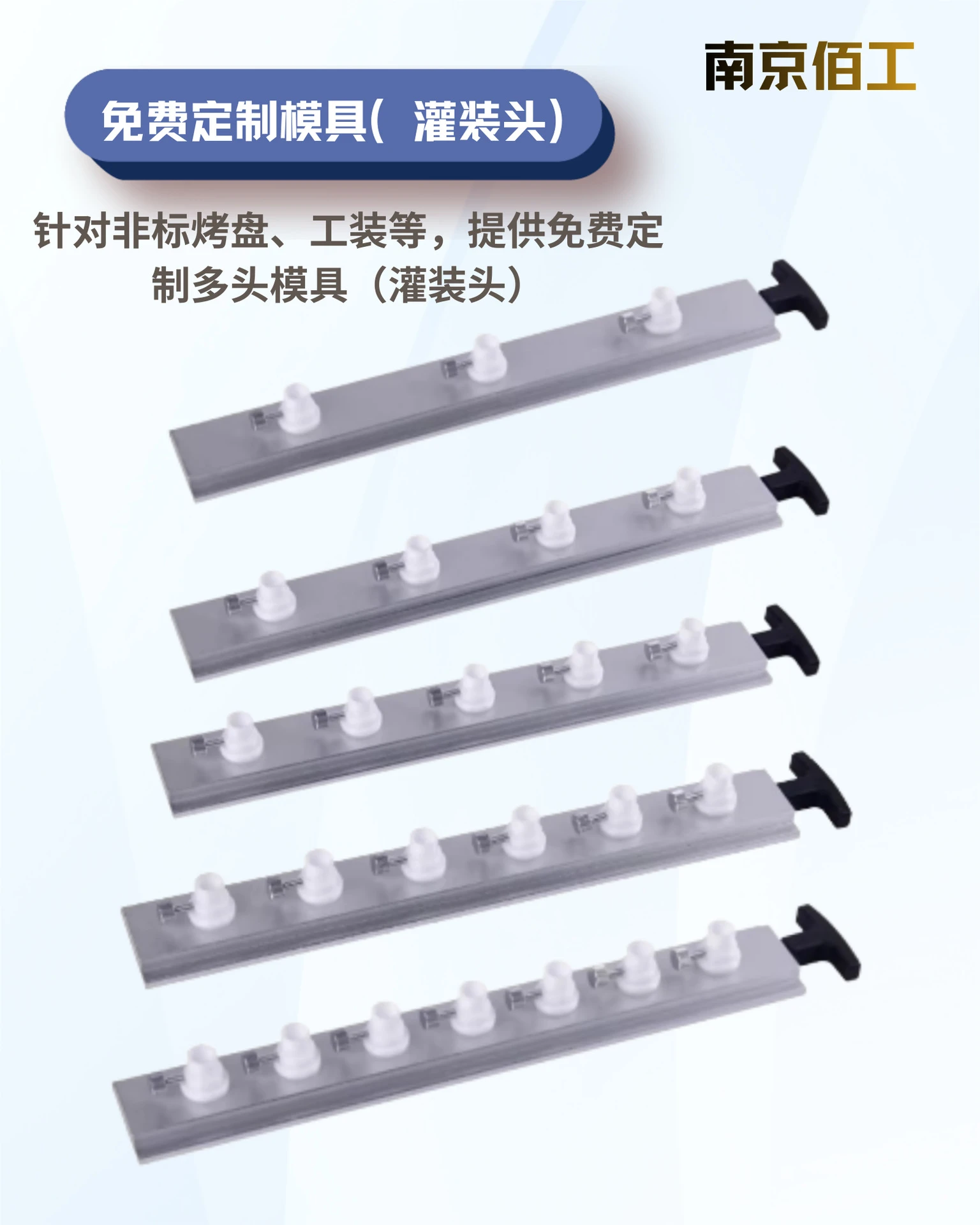

anti-blistering: Special grouting head design reduces batter foaming and improves finished product quality
Strong adaptability: Suitable for paper cups, magic castles, egg yolk pie, Changbai cake and other products

scope of application

It is suitable for various food production scenarios such as food processing factories, central kitchens, chain restaurants, baking workshops, and supermarket deli areas. Equipment specifications, mold shapes and capacity configurations can be customized according to customers 'actual needs, and full-process services from scheme design to installation and debugging can be provided.

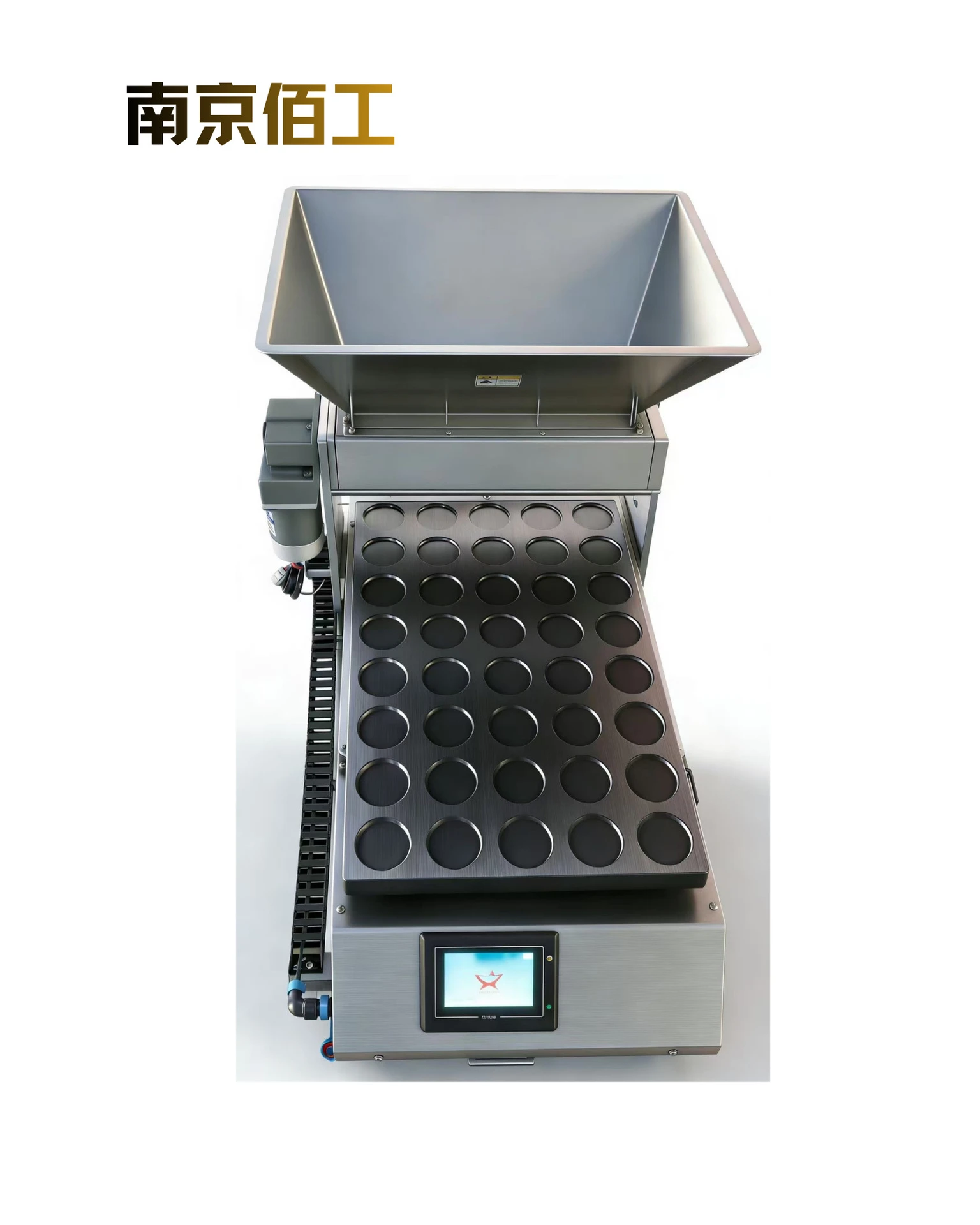

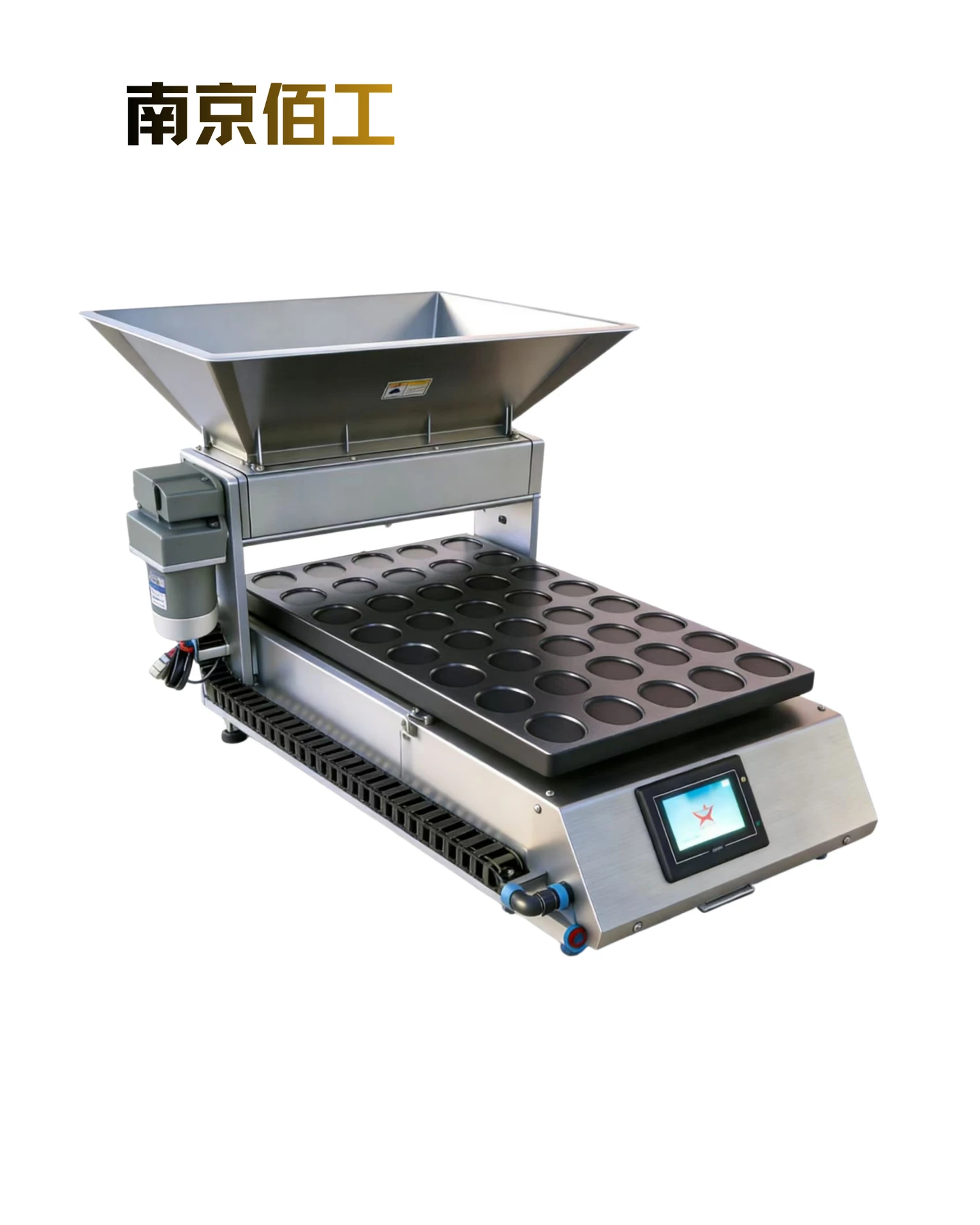

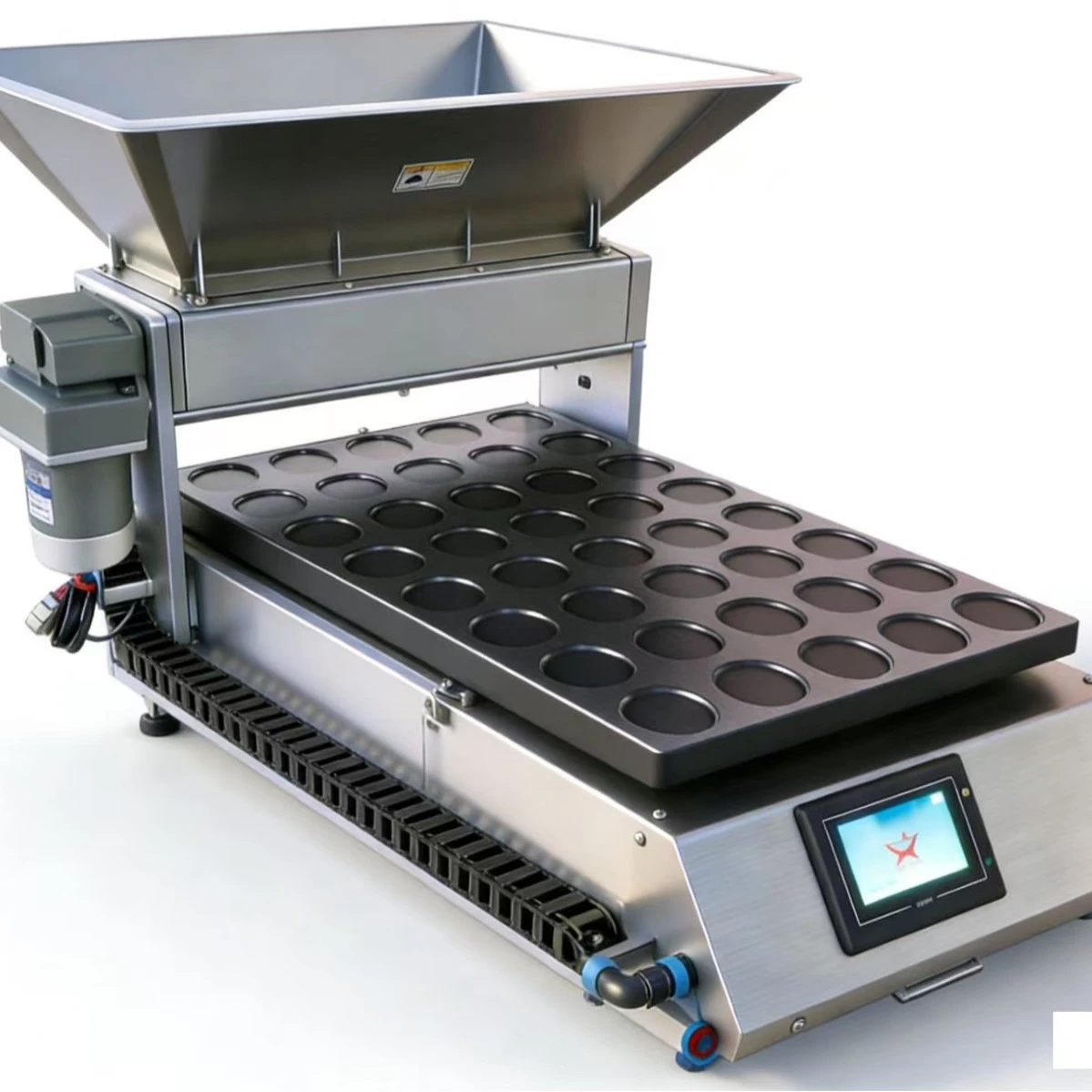

Real shots of products and detailed display

Demonstration of using cake filling machine

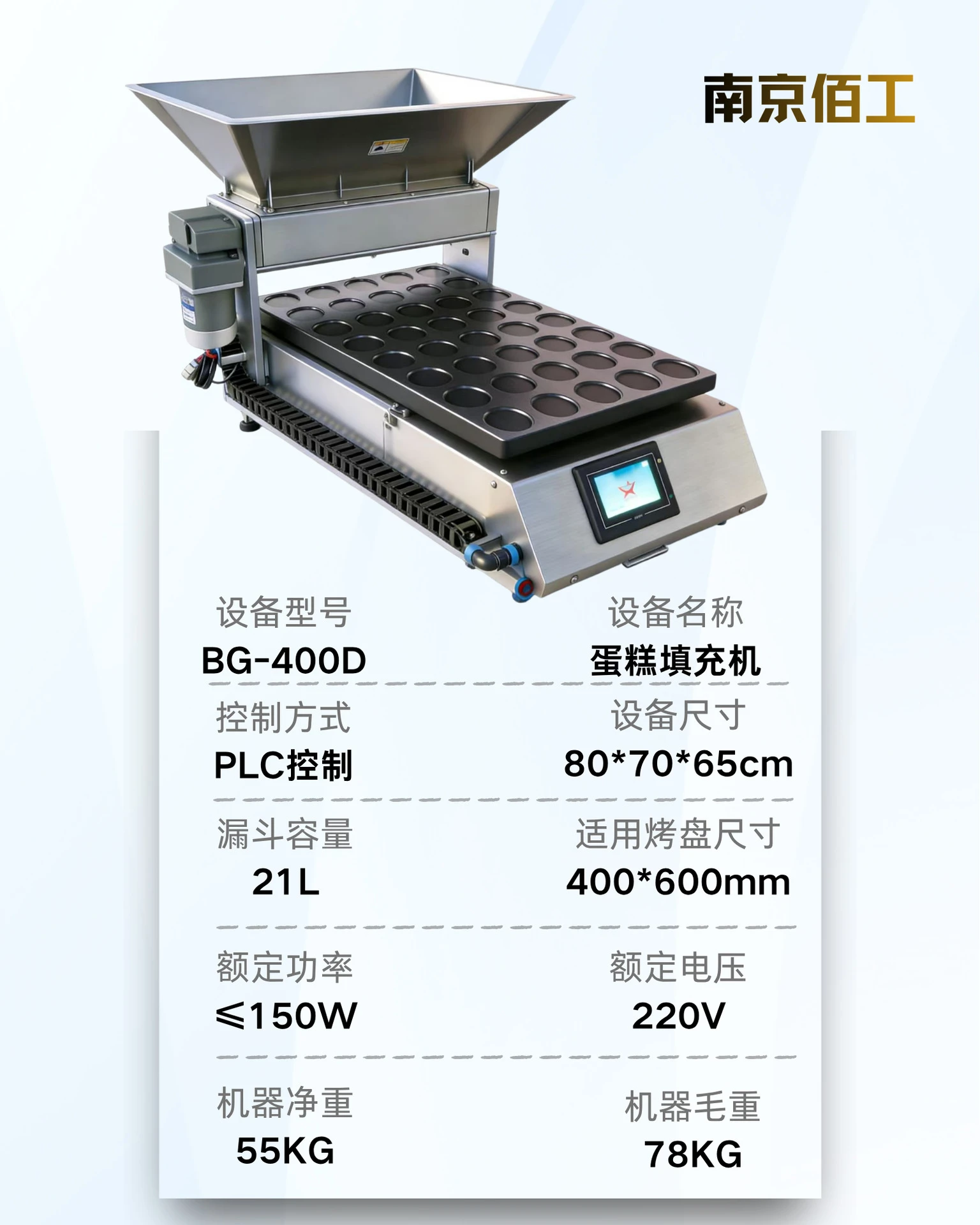

parameters	specifications
parameter items	parameter values
device model	Cake grouting machine
quantitation range	10g~100g is continuously adjustable and suitable for paper cups, magic castles, egg yolk pie, Changbai cake, etc.
Material of the whole machine	food grade 304 stainless steel
control mode	PLC+ touch screen/digital temperature control
applicable scenarios	Food processing factory/central kitchen/chain catering
silo capacity	21 L
rated power	250 W
rated voltage	220 V
Overall size	800×765 mm

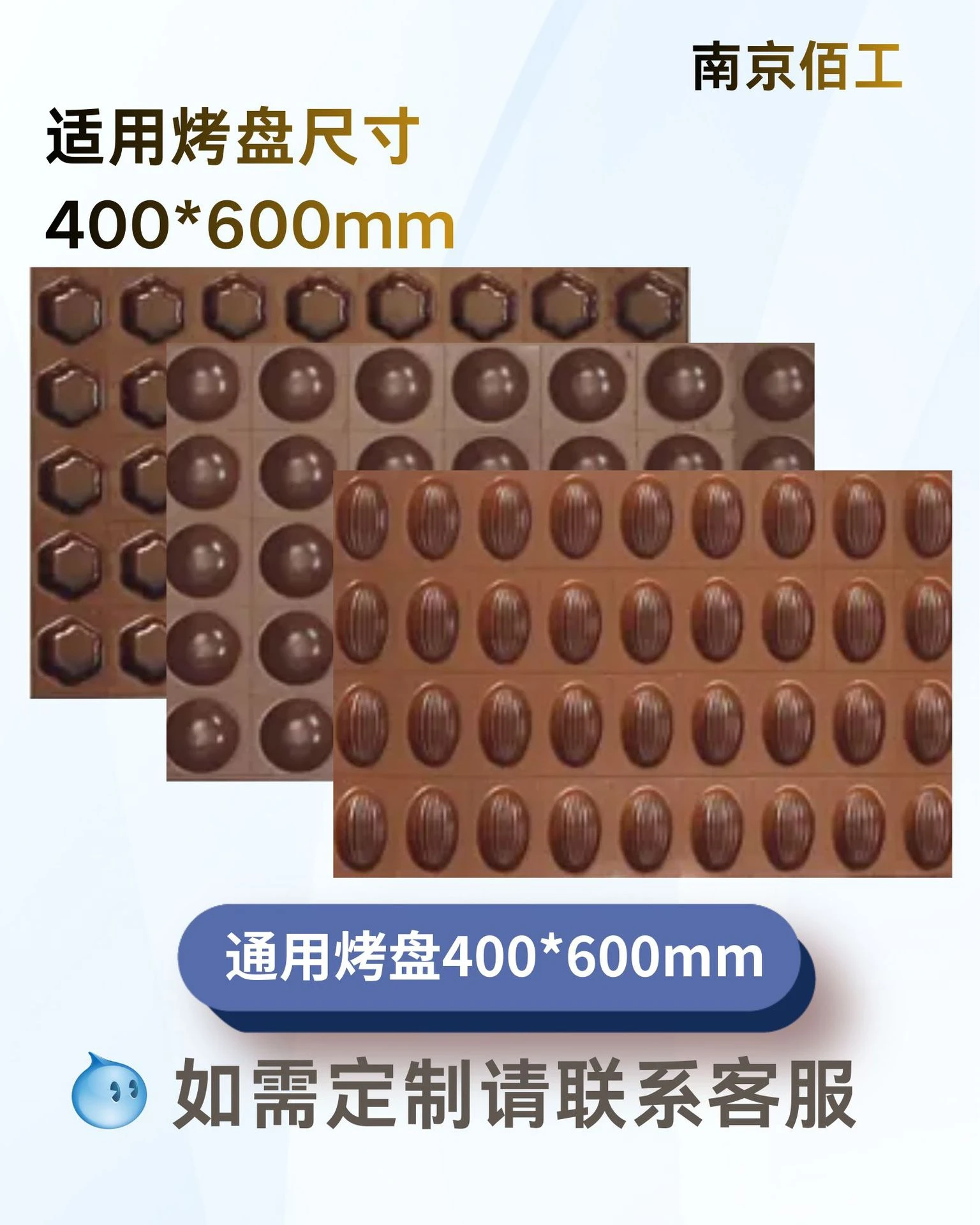

Suitable baking pan	400×600 mm
net weight	78 kg

daily maintenance

maintenance items	cycle	maintenance content
equipment cleaning	daily	After production, clean baking trays, hoppers, conveyor belts and other parts that come into contact with materials, wash them with food grade detergent and dry them dry.
lubrication and maintenance	weekly	Add food-grade lubricants to driving chains, bearings, guide rails and other moving parts to ensure smooth operation
electrical inspection	monthly	Check electrical components such as power cords, thermostats, and sensors to ensure that the wiring is firm and the temperature control is accurate.
depth maintenance	quarterly	Comprehensively disassemble and clean the heating module and transmission system, check the wear of wearing parts, and replace them in time

precautions

Before the equipment is running, check whether the power supply and air source connections are normal and make sure there are no foreign objects blocking it.
The power must be cut off during cleaning and maintenance, and the equipment must be operated after it has completely cooled down to prevent burns.
It is forbidden to directly flush the electrical control box with water to avoid short circuit damage
Before long-term use, the equipment should be thoroughly cleaned, applied with anti-rust oil, and placed in a dry and ventilated place
Wearing parts (heating pipes, seals, conveyor belts, etc.) should be inspected regularly and replaced in time
In case of failure, please contact after-sales technical support in time, and do not disassemble core components yourself

Warm reminder:Correct daily maintenance can significantly extend the service life of equipment, reduce failure rates, and ensure stable production operation. It is recommended to establish an equipment maintenance ledger to record each maintenance content and replacement parts.

Cake grouting machine is specially designed for automated grouting of batter products such as cakes and cakes. PLC+ touch screen is fully digitally controlled and can store multiple recipe parameters for one-click switching. Servo motor drive and photoelectric tracking allow small error in grouting volume and consistent grammage thickness. Anti-foaming and anti-drip design, suitable for various products such as paper cups, magic castles, egg yolk pies, etc., is the key equipment in the baking production line.
